Suitable for use in areas with explosion hazards. Insensitive to moisture, dust and temperature (temperature range from -20°C to 70°C, low netAir, compact structure, low air consumption; worldwide service network.

Technical Details

The vane motor is safe to start and requires low maintenance, even in the event of a sudden air failure. The disc brake can secure the lifted load in place.Set.All gear components are made of high-quality steel that has been quenched and tempered.Controller for valve.

appendix

Enhanced spark protectionBracket and pinion gearOverload protectionDual drive speedFilter silencerIf required, we can provideDNV, ABS and Lloyds Register of Shipping, etc. Third-party certification.

Special Programs

If you cannot find the right lifting system for your particular application in our standard offering, we can design a special lifting system to suit your needs.Special products.

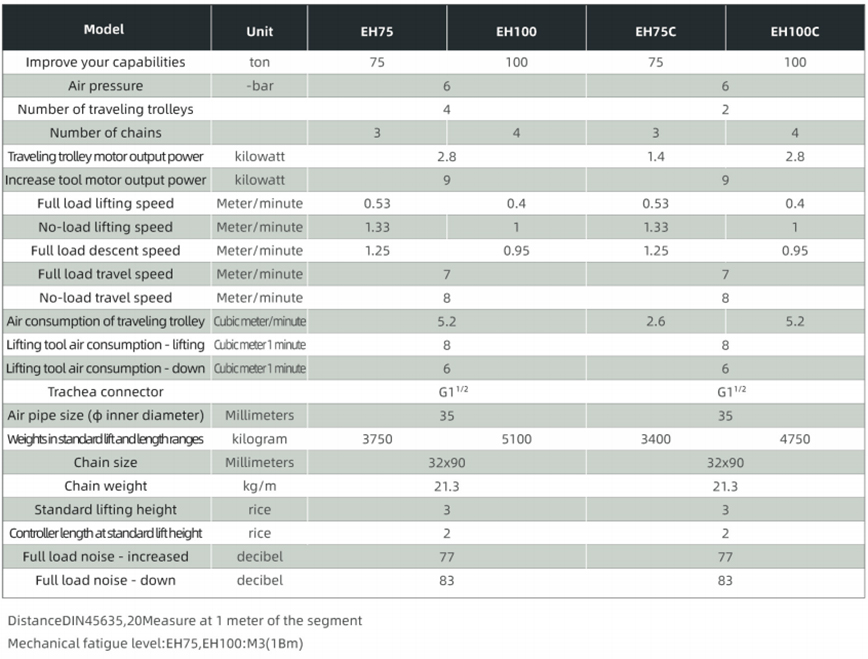

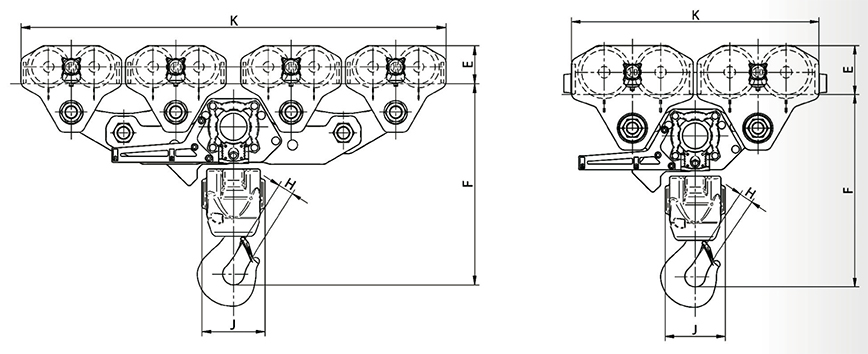

In the EH series, the 75 ton and 100 ton versions are now available in two versions: a double trolley and the original four-trolley transverse drive. The new twin trolley models EH75C and EH100C have a more compact structure and are suitable for use in limited spaces.
